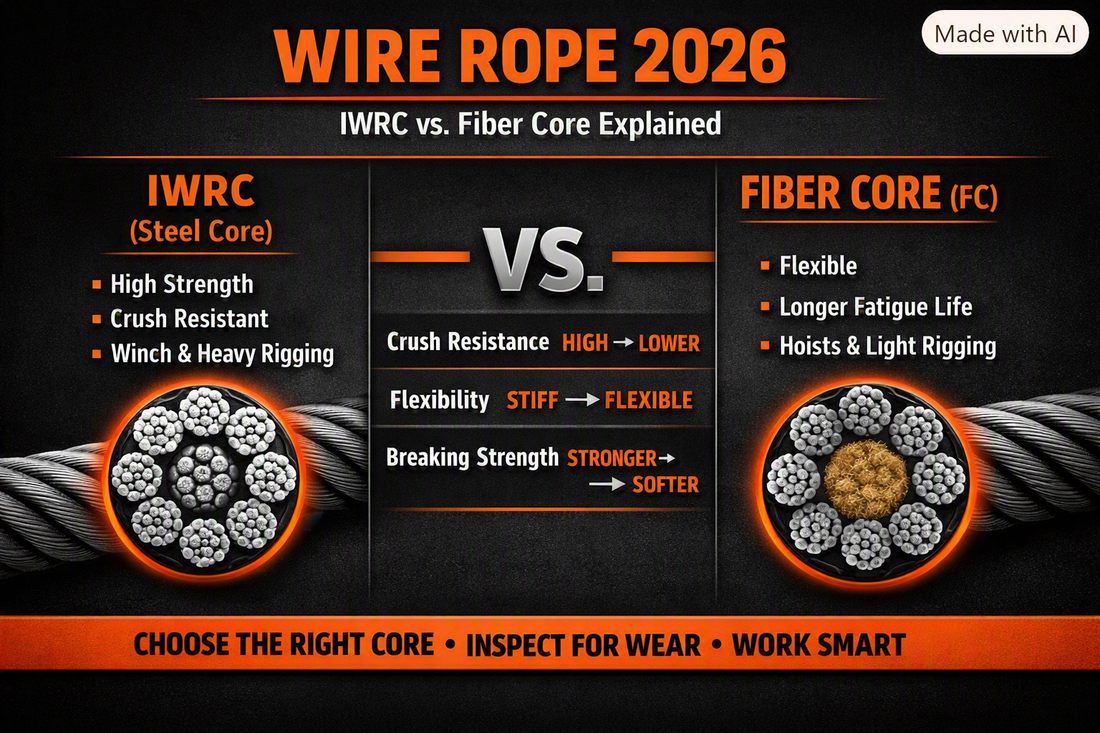

Wire Rope: IWRC vs. Fiber Core Explained for Towing and Rigging Applications

If you've ever ordered wire rope and stared at a spec sheet trying to decode "IWRC" versus "FC," you're not alone. The difference between these two core types affects how a rope handles load, bends around a sheave, and holds up over years of use. Choosing the wrong one won't always cause an immediate failure—but it will cost you sooner than it should.

This article breaks down both constructions, explains where each performs best, and helps you match the right wire rope to towing, winching, and rigging work.

What Is Wire Rope, and Why Does the Core Matter?

Wire rope is built in layers. Individual wires are twisted into strands, and those strands are laid around a central core that runs the full length of the rope. The core does two things: it supports the strands from the inside, and it determines how the rope handles bending, crushing, and sustained tension.

Get it wrong and you'll see the rope flatten under load, lose flexibility on tight drum wraps, or wear out well before its rated service life.

There are two main core types used in professional towing and rigging:

• IWRC (Independent Wire Rope Core)
• FC (Fiber Core), sometimes called WSC (Wire Strand Core) when the fiber is replaced with a single wire strand

IWRC: Independent Wire Rope Core

An IWRC rope has a small, fully constructed wire rope running through its center—complete with its own wires, strands, and lay—rather than a fiber bundle.

Strength and Crush Resistance

Because the core is steel, IWRC rope resists radial crushing far better than fiber core. When a rope wraps tightly around a drum or passes over a sheave under high tension, the strands press inward. A steel core holds its shape. A fiber core compresses.

IWRC construction also adds roughly 7.5% to the metallic cross-section compared to an equivalent fiber core rope of the same diameter, which translates directly to higher breaking strength.

Where IWRC Belongs

IWRC is the right call when:

• The rope will be spooled on a power winch under significant load
• The application involves multi-layer drum wrapping, where lower layers bear the weight of upper wraps
• You need maximum crush resistance in tight sheave arrangements
• The environment is hot or oily, where fiber cores degrade faster

For recovery winching or running wire rope through a snatch block under repeated load cycles, IWRC is the more durable option. Vulcan's ProSeries steel-core winch cable in 3/8-inch by 100-foot is built on this principle—steel core construction designed to hold up under the demands of drum-wrapped winch work.

The Trade-Off

IWRC rope is stiffer. On applications requiring tight bends or hand-splicing, that stiffness works against you. It also weighs slightly more per foot than an equivalent fiber core rope.

Fiber Core Wire Rope

Fiber core rope uses a bundle of natural fiber (traditionally sisal or manila) or synthetic fiber at its center. The fiber acts as both a cushion and a lubricant reservoir, releasing oil into the rope during flexing to reduce internal wear.

Flexibility and Fatigue Life

Fiber core rope bends more easily than IWRC. That flexibility makes it a better fit when the rope passes over small-diameter sheaves repeatedly, or when it needs to be handled, coiled, and repositioned often.

In lifting applications with a favorable D/d ratio—the ratio of sheave diameter to rope diameter—fiber core can actually outlast IWRC in fatigue cycles because the individual wires aren't fighting a rigid center.

Where Fiber Core Belongs

Fiber core is appropriate when:

• The application uses a single-layer drum or a large-diameter sheave
• Flexibility for manual handling or splicing is a priority
• The load is predominantly tensile with minimal lateral crushing
• The environment is moderate and the rope can be lubricated regularly

Overhead lifting with a hoist, hand-rigging in construction, and applications where the rope is frequently re-routed are natural fits.

The Trade-Off

Fiber core compresses under high radial loads. In multi-layer drum applications, the rope can flatten and birdcage—which weakens it and makes it unsafe to continue using. Fiber cores also absorb moisture, which accelerates internal corrosion if the rope isn't dried and re-lubricated after wet exposure.

Side-by-Side Comparison

Wire Rope in Towing and Recovery Applications

For tow truck operators and recovery specialists, the winch drum is the primary use case. Most recovery winches spool rope in multiple layers, and during a pull, the rope is under radial compression from both the drum and adjacent wraps.

That environment favors IWRC every time. Fiber core rope on a recovery winch will flatten under repeated heavy pulls, and once the rope loses its round cross-section, the working load limit is compromised—regardless of what the tag says.

When you're running a snatch block to redirect a pull, the rope bends around the block's sheave, and the D/d ratio matters. A large-diameter sheave reduces bending stress on the rope. Vulcan's catalog includes snatch blocks designed for towing and recovery work, pairing with wire rope for vehicle extraction and load redirection.

Wire Rope in Rigging and Lifting Applications

Wire rope slings are a separate category from running rope. A sling is a pre-fabricated assembly with end terminations, used to connect a load to a hook or hoist ring. The IWRC versus fiber core decision still applies, but the service conditions are different.

In vertical hitch, choker hitch, and basket hitch configurations, slings see tensile load and some bending at the termination points. IWRC handles the tensile demands well. But when a sling must wrap tightly around an irregular load in a choker configuration, the added stiffness of IWRC can create higher stress concentration at the bend point.

Rigging contractors who need maximum flexibility in a choker application sometimes prefer fiber core slings for that reason—accepting lower crush resistance in exchange for a tighter, more conforming wrap.

For most commercial lifting work, though, IWRC wire rope slings are the standard. They offer higher rated capacity for a given diameter and hold up better in industrial environments.

If your lifting work involves heavier loads or more demanding duty cycles, chain slings in Grade 80 or G120 may be a better fit than wire rope altogether. Chain doesn't fatigue the same way wire rope does, and it handles abrasion and heat better. Vulcan's lifting catalog covers both wire rope slings and Grade 80 and G120 chain slings, so you can match hardware to the actual load condition rather than defaulting to one material.

Inspection and Retirement Criteria

Wire rope doesn't announce when it's failing. You have to look for it. The core inspection points apply to both IWRC and fiber core:

• Broken wires: ASME B30.2 guidance specifies removal from service when a defined number of broken wires appear within a given lay length. Check the applicable standard for your use case.
• Corrosion: Surface rust is visible; internal corrosion isn't. If the rope has been exposed to moisture and wasn't re-lubricated, assume internal corrosion is progressing.
• Kinking: A kinked rope has permanently deformed wires. That section will never return to rated capacity—cut it out or retire the rope.
• Birdcaging: Strands separate and splay outward, usually from shock loading or fiber core compression. Retire immediately.
• Diameter reduction: Measure the rope. A reduction of more than 3% from nominal diameter is a retirement indicator in most standards.

IWRC rope tends to show external wire breaks before structural failure because the steel core maintains the rope's geometry longer. Fiber core rope can fail internally while looking acceptable on the outside—which is a strong argument for more frequent inspection in high-load applications.

Matching Core Type to Your Work

The practical decision comes down to three questions:

1. Is the rope going on a drum winch with multiple wraps? Use IWRC.
2. Does the rope need to bend around small sheaves repeatedly, or be handled and spliced frequently? Fiber core is worth considering.
3. Is the environment wet, oily, or hot? IWRC handles those conditions better.

For most towing and recovery operators, IWRC is the default correct answer. The winch drum, the recovery pull, and outdoor exposure all favor a steel core. Fiber core earns its place in overhead lifting with well-sized sheaves and controlled environments.

If you're sourcing wire rope, winch cables, or lifting slings and want specs stated clearly before you buy, Vulcan Brands puts grade, working load limit, and dimensions directly in the product title—so you know what you're getting without digging through a distributor PDF.

FAQs

What does IWRC stand for in wire rope? IWRC stands for Independent Wire Rope Core. It refers to a construction where the center of the rope is itself a small, fully formed wire rope rather than a fiber bundle. This gives the rope higher crush resistance and a slightly higher breaking strength compared to fiber core rope of the same diameter.

Is IWRC wire rope stronger than fiber core? Yes, in most measurable ways. IWRC rope has a larger metallic cross-section, which increases breaking strength by roughly 7.5% compared to an equivalent fiber core rope. It also resists radial crushing better—which matters in drum winch applications where the rope wraps under load.

When should you use fiber core wire rope instead of IWRC? Fiber core is the better choice when flexibility is the priority: when the rope must pass over small-diameter sheaves repeatedly, when it needs to be hand-spliced, or when it's used in a single-layer hoist application with a favorable sheave-to-rope diameter ratio. It also has a longer fatigue life in bending-dominated applications.

Can you use fiber core wire rope on a recovery winch? It's not recommended. Recovery winches typically spool rope in multiple layers, and the radial pressure from upper wraps compresses a fiber core over time. The rope flattens, the working load limit is compromised, and birdcaging becomes a real risk. IWRC is the correct choice for drum-wound recovery winch applications.

How do you inspect wire rope before a lift or pull? Look for broken wires along the rope's length, visible corrosion, kinks, birdcaging, and any reduction in diameter. Measure the rope against its nominal diameter—a reduction of more than 3% is a retirement indicator in most standards. Also check end terminations and thimbles for wear or distortion.

What is birdcaging in wire rope and what causes it? Birdcaging is when the strands splay outward and separate from the core, creating a cage-like bulge in the rope. It's usually caused by shock loading, sudden tension release, or fiber core compression under high radial load. A birdcaged rope must come out of service immediately—the structural integrity is gone.

What's the difference between wire rope slings and running wire rope? Running wire rope is used in dynamic applications like winch drums and crane lines, where the rope moves through sheaves and spools onto drums. Wire rope slings are pre-fabricated assemblies with fixed end terminations, used to attach a static load to a lifting hook or rigging point. Both can use IWRC or fiber core construction, but the inspection criteria and service conditions differ.

Wire rope selection isn't complicated once you understand what the core is actually doing under load. Match the core type to the application, inspect regularly, and retire rope before it fails rather than after. For towing and recovery work, IWRC is almost always the right starting point.
