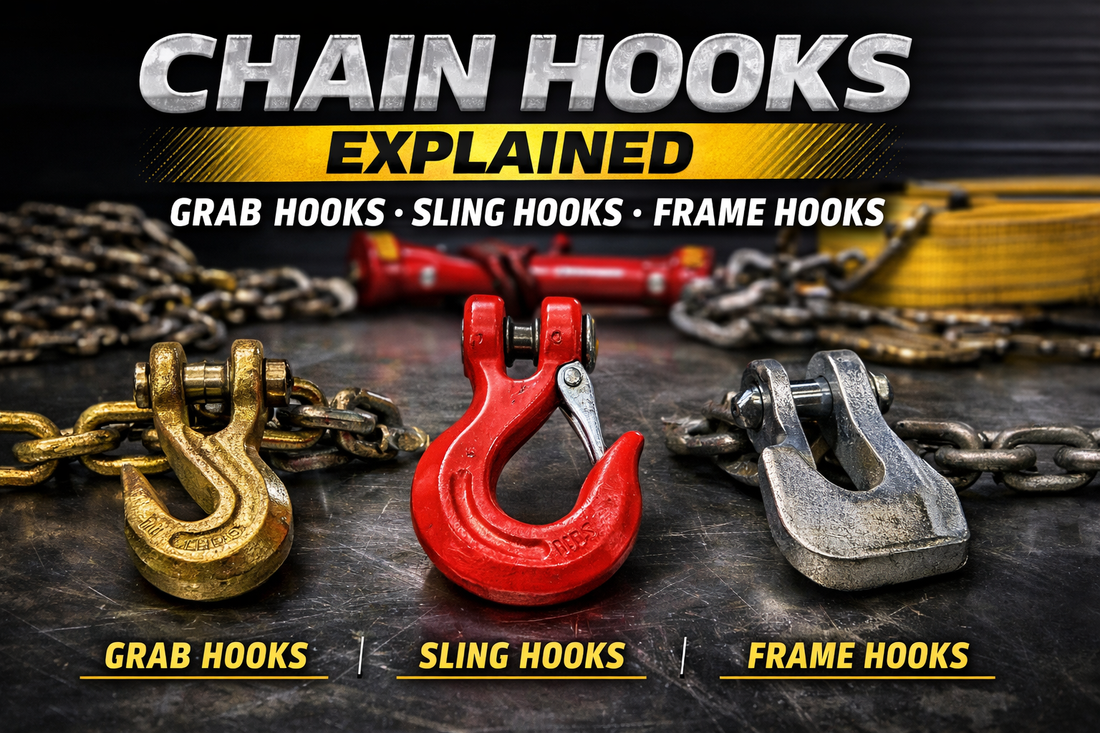

Chain Hooks Explained: Grab Hooks, Sling Hooks, and Frame Hooks — Which Do You Need?
When you're running a chain with hooks, the hook type matters as much as the chain grade. The wrong hook misplaces stress, drops your working load limit, or lets the chain slip at exactly the wrong moment. Here's what you need to know about the three hook types you'll encounter most — grab hooks, sling hooks, and frame hooks — so you can put the right one on your rig.
Why Hook Type Is Not Interchangeable
A hook isn't just a fastener. Each type is engineered to interact with chain links, anchor points, or load surfaces in a specific way. Swap a grab hook for a sling hook, or run the wrong one for the job, and you change how load force distributes across the hook throat. That affects the rated working load limit of the entire assembly — not just the hook.
Chain grade matters here too. A hook rated for Grade 70 transport chain is not automatically rated for Grade 80 or G120 lifting chain. Match hook grade and SWL to the chain you're running. Every time.
Grab Hooks
What They Do
A grab hook has a narrow throat sized to capture a specific chain link and lock it in place. The link seats in the throat and doesn't move. That's the whole point.
Grab hooks are standard on load binders, safety chains, and transport chain assemblies. When you're securing a vehicle to a flatbed or car hauler and need the chain to stay exactly where you set it, a grab hook is what you want.
When to Use Them
- Securing tie-down chains to axle straps or frame points
- Connecting a load binder to a transport chain
- Any application where chain length needs to be fixed at a specific link
Vulcan's ratchet-style load binder — rated at 7,100 lb SWL, compatible with 5/16-inch or 3/8-inch Grade 70 chain — uses two grab hooks for this reason. They lock chain position so the binder applies consistent tension without the chain creeping under load.
What to Watch For
Grab hook throat width is chain-size specific. A hook sized for 5/16-inch chain won't properly seat a 3/8-inch link. If the link rests on the hook tip instead of seating in the throat, holding strength drops significantly. Always verify hook size matches your chain size before the load goes on.
Sling Hooks
What They Do
A sling hook has a wider, more open throat than a grab hook. It's built to accept a master link, shackle, or sling end fitting — not a chain link. Most include a safety latch to prevent accidental disengagement under load.
These are the hooks on chain slings used in overhead lifting. They connect the sling leg to the load: a lifting lug, a shackle, a fabricated lifting point.
When to Use Them
- Attaching a Grade 80 or G120 chain sling leg to a load
- Connecting to a shackle or master ring in a multi-leg sling configuration
- Any overhead lifting application where the hook needs to seat on a fitting rather than a chain link
For riggers running certified lifting gear, sling hook grade must match the chain sling grade. A G80 hook on a G120 sling assembly pulls the rated capacity of the entire assembly down to the G80 rating. The weakest component sets the limit — always.
What to Watch For
Safety latches on sling hooks aren't optional in overhead lifting. ASME B30.9 covers sling standards, and a hook without a functioning latch is a noncompliant hook. Inspect the latch before every lift. If it's bent, worn, or won't spring back, replace the hook before that chain goes back in service.
Frame Hooks
What They Do
A frame hook — sometimes called a tie-down hook or car hauler hook — attaches directly to a vehicle's frame, axle, or structural tie-down point. The profile is wider and more open than a grab hook, allowing it to wrap around frame rails or axle tubes without needing a chain link as an intermediary.
Frame hooks are standard on car tie-down chains used by auto haulers and vehicle transport operators. They give you a direct, positive connection to the vehicle.
When to Use Them
- Attaching transport chains directly to vehicle frame rails
- Connecting to designated tie-down points on a vehicle
- Car hauler and auto transport applications where the hook contacts the vehicle directly
What to Watch For
Frame hooks can damage vehicle finishes or structural components if placed wrong. Always hook to a designated structural point — not a cosmetic panel or suspension component. On newer vehicles with composite or aluminum frames, confirm the frame material can handle the contact load before you apply tension.
Comparing the Three Hook Types
| Hook Type | Throat Style | Primary Use | Chain Grade Match |
|---|---|---|---|
| Grab Hook | Narrow, link-seating | Load binders, transport chains, safety chains | G70, G80, G120 — match to chain |
| Sling Hook | Wide, with safety latch | Chain slings, overhead lifting, master rings | G80, G120 — must match sling grade |
| Frame Hook | Open, wide profile | Auto transport, vehicle tie-down, frame attachment | G70 transport chain typical |
Chain Grade and Hook Compatibility
This is where operators get into trouble. Chain grade and hook grade must align.
Grade 70 (G70) is the standard for cargo securement and vehicle transport. Yellow chromate finish. Rated for DOT tie-down applications. Grab hooks and frame hooks on a transport chain assembly should be G70-rated to match.
Grade 80 (G80) is the minimum standard for overhead lifting. Alloy steel, marked with "8" or "800" on the link. Sling hooks on a G80 chain sling must be G80-rated.
Grade 100 / G120 is higher-strength alloy chain used in lifting applications where capacity per chain size matters. Hooks must be rated G100 or G120 to maintain the assembly's full SWL.
Running a G70 hook on a G80 chain sling doesn't give you a G80 assembly. It gives you a G70 assembly with a G80 chain. The hook sets the limit.
Matching Hooks to Your Application
If you haul vehicles for a living, your chain with hooks setup is almost certainly grab hooks and frame hooks on G70 transport chain. That's the right configuration for DOT-compliant cargo securement on a flatbed or car hauler.
If you do overhead lifting — rigging steel, positioning loads on a job site, working with cranes or hoists — you need sling hooks on rated, marked G80 or G120 chain slings. No exceptions. Certification risk on a lifting job isn't a cost worth taking.
If you run a load binder on your tie-down chains, grab hooks are already built into that assembly. Vulcan's load binder rated at 7,100 lb SWL ships with two grab hooks sized for 5/16-inch or 3/8-inch G70 chain. Hook size and chain size are already matched.
Inspect Before Every Use
Hook condition degrades with use. Before every job, check for:
- Throat opening beyond manufacturer's tolerance — typically more than 15% wider than new
- Cracks, gouges, or heat discoloration
- Bent or twisted shank
- Worn or non-functioning safety latch on sling hooks
A hook that fails visual inspection comes out of service. It doesn't go back on the chain.
The full catalog of cargo control, towing, and lifting gear — including rated chain assemblies, load binders, and sling hardware — ships free on every order at Vulcan Brands, no minimum required.
Frequently Asked Questions
What is the difference between a grab hook and a sling hook? A grab hook has a narrow throat that seats a specific chain link and holds it in place. A sling hook has a wider, open throat with a safety latch and is designed to connect to a master link, shackle, or load fitting. They are not interchangeable.
Can I use a Grade 70 hook on a Grade 80 chain sling? No. Hook grade must match chain grade in a lifting assembly. A G70 hook on a G80 chain sling limits the entire assembly's working load limit to the G70 rating. For overhead lifting, use G80 or G120 hooks matched to the sling grade.
What hook type is used on a load binder? Load binders use grab hooks. The throat is sized to seat a specific chain link and hold position while the binder applies tension. Vulcan's ratchet-style load binder rated at 7,100 lb SWL includes two grab hooks compatible with 5/16-inch or 3/8-inch Grade 70 chain.
What is a frame hook used for? A frame hook attaches directly to a vehicle's frame rail, axle, or structural tie-down point. It's the standard hook on car hauler and auto transport chains. The wider, open profile lets it wrap around frame sections without needing a chain link as an intermediary.
How do I know if a hook is worn out? Check the throat opening first. If it's spread more than 15% beyond the original dimension, pull it from service. Also look for cracks, bends, and heat damage. On sling hooks, verify the safety latch functions correctly. A hook that fails any of these checks doesn't go back on a working chain.
Do hook size and chain size have to match? Yes. A grab hook throat is sized for a specific chain link diameter. Running a larger link in an undersized throat — or a smaller link in an oversized one — changes how load force distributes and reduces the assembly's effective holding strength. Always verify the match before loading.
What chain grade is standard for vehicle transport tie-downs? Grade 70 (G70) is the standard for cargo securement and vehicle transport under DOT regulations. It's the correct grade for use with grab hooks and frame hooks on a flatbed or car hauler setup.
